Mirage Liquidity Sweep Pro
Mirage Liquidity Sweep Pro by Himbit-AlgoTrade finds liquidity sweeps, scores each 0-100, optionally waits for a CHoCH and builds a full trade plan with SL, TP1-TP3 and break-even.

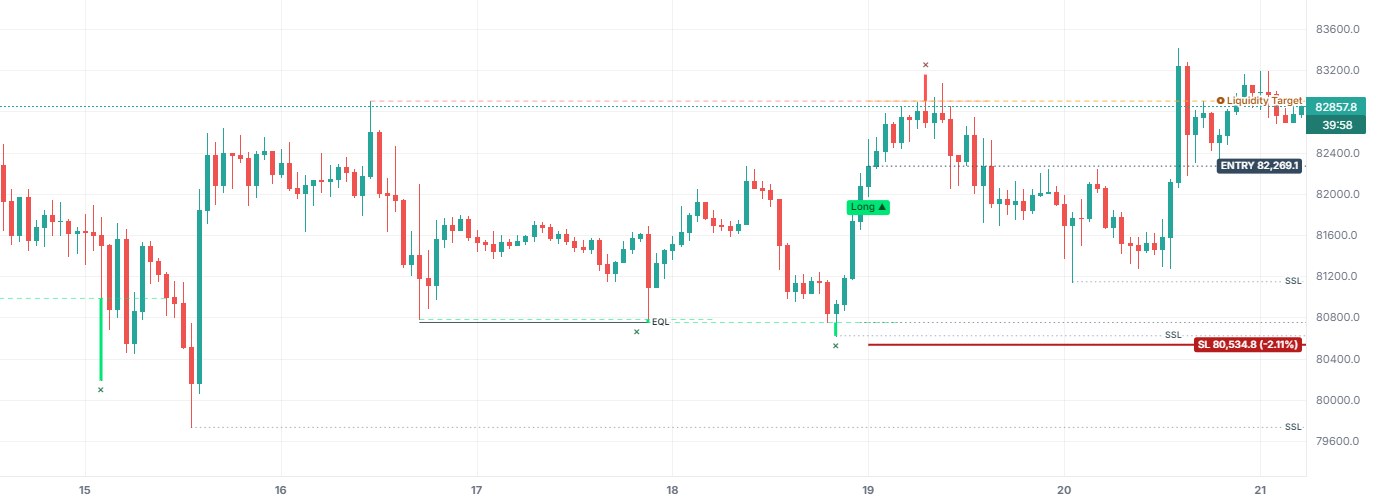

How to read it
- A × marks a wick that took a swing high / low and closed back inside; BSL / SSL lines show liquidity not yet taken, EQH / EQL near-equal levels.
- Score: wick 30 %, reclaim 25 %, close position 20 %, volume 15 %, higher-timeframe bias 10 %.
- On a signal: entry at the close, stop beyond the sweep wick, TP1-TP3 in R and a gold line to the nearest opposite liquidity.
- The dashboard shows trend, HTF bias, the open trade and simulated stats on the loaded bars.
Key settings
- Swing length 21, max sweep distance 80 bars, min sweep score 50.
- CHoCH confirmation on (minor pivot 8, wait up to 13 bars, cancel if the wick is retaken).
- Risk preset Balanced: SL buffer 0.25 × ATR, TP 1 / 2 / 3 R, break-even after TP1; ATR 14.
- HTF bias: EMA 50 on 4h; volume spike 1.5 × its 21-bar average.
Good to know
- Drawn on the price pane, over the candles. Closed bars only; nothing repaints. One position at a time.
- Stats are simulated on the loaded bars with no fees, slippage or funding; a win = TP1 touched.
- An analysis tool, not financial advice.
